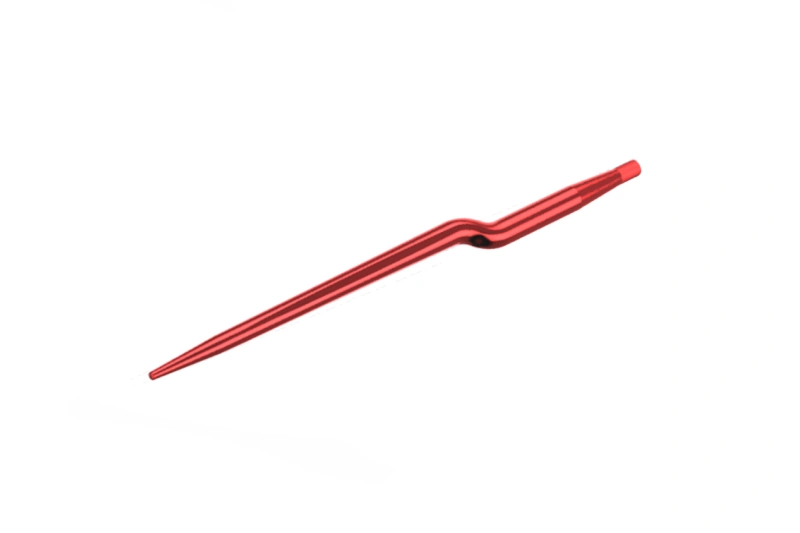

Cranked LoaderTines 820mm for Tractors, Loaders and Skid Steers

Operational Advantages

• Cranked Offset Design
  The cranked section lowers the spear’s tip relative to the center of the mounting frame. This geometry allows the tine to slide cleanly under bales resting flat on the ground, preventing frame drag and reducing soil disruption during loading operations.
• Improved Load Distribution
  The compact 820 mm length reduces the leverage arm extending from the mounting base. Combined with the offset structure, this design strictly limits bending moments and provides exceptional stability when lifting highly dense or shifting loads.
• Forged Steel Construction
  Manufactured using a high pressure drop forging process, the tine features a refined internal grain structure and superior tensile strength. This construction improves resistance to bending, wear, and metal fatigue during continuous lifting and material handling operations.

Manufacturing Quality

• Drop Forging
  The tine body is produced using closed die drop forging, aligning the internal grain structure from the mounting base, through the offset bend, directly to the tapered tip. This process significantly increases yield strength and durability under extreme cantilever loads.
• German-Standard Heat Treatment
  A controlled heat treatment process based on German standards is applied to optimize hardness and bending resistance across the offset structure. The mounting base remains tough and ductile to prevent cracking or shear failure at the connection point.
• CNC Precision Machining
  The mounting base is CNC machined to precise tolerances to ensure a secure fit inside standard loader sleeves. Accurate machining minimizes lateral play and helps maintain load stability during transport.

Applications
This compact 820 mm cranked spear is suitable for handling dense round and square hay bales, agricultural material handling, and tight-clearance front loader operations requiring modified ground clearance. It performs reliably on tractors, loaders, and skid steer machines in demanding farming environments.
