Foundation Drilling Weld-on Holders for Secure Tooth Installation

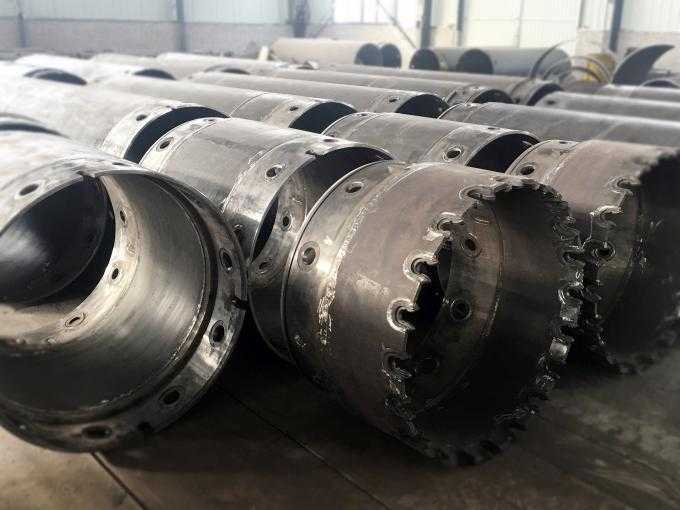

foundation drilling weld on holder installed
Weld-on holders are essential wear components used in foundation drilling tools to support stable and efficient cutting performance under demanding ground conditions.

They are welded onto drilling buckets, augers, and core barrels to form a reinforced base for tooth installation.

Designed to securely hold round shank teeth or flat teeth, these holders ensure reliable tooth retention even under heavy impact and abrasive drilling environments.

Available in multiple OEM-compatible series to match different casing shoe and drilling tool configurations.

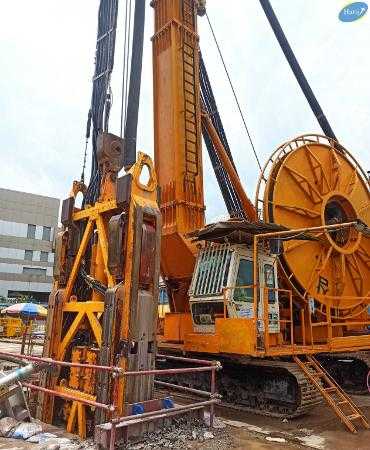

Applications of Weld-On Holders in Foundation Drilling

Applications of Weld-On Holders in Foundation Drilling

Weld-on holders are used in diaphragm wall excavation systems to reinforce the cutting structure and maintain stable tooth performance in slurry-filled trenching conditions. They provide high wear resistance under continuous deep excavation, ensuring reliable cutting efficiency in complex underground environments.
In rotary drilling applications, weld-on holders are installed on drilling buckets to enhance tooth retention and improve operational stability under high torque and deep foundation drilling conditions. They help maintain consistent cutting performance in large diameter piling operations.
Weld-on holders are commonly applied on casing shoes and casing drilling tools to provide a reinforced cutting interface during casing advancement. They reduce wear during rotation and penetration, ensuring stable performance in demanding casing drilling operations.
In bored pile foundation projects, weld-on holders contribute to drilling efficiency by maintaining secure tooth positioning under heavy load conditions. They help reduce tooth loss and improve consistency during continuous foundation construction work.
Weld-on holders perform effectively in hard rock, gravel, and mixed soil conditions where high abrasion and impact forces are present. Their reinforced structure extends tool life and ensures stable drilling performance in challenging geological formations.

Compatible Equipment & Machine Brands

Equipment Types

Weld-on holders are compatible with a wide range of foundation drilling equipment used in deep foundation engineering applications.

They are commonly installed on drilling buckets, augers, core barrels, and casing shoe assemblies to ensure stable tooth retention and reliable cutting performance under heavy load conditions.
  • Drilling Buckets
  • Augers
  • Core Barrels
  • Casing Shoe Systems
  • Rotary Drilling Attachments

Machine Brands

Our weld-on holders are designed to be compatible with major foundation drilling equipment brands used worldwide in piling and deep foundation construction projects.
  • Bauer
  • Soilmec
  • Casagrande
  • Liebherr
  • SANY
  • XCMG
Compatibility may vary depending on drilling tool configuration and project specifications. OEM customization is available upon request.

Features of Our Foundation Drilling Weld-On Holders

Reliable Weldability

Engineered for strong and consistent welding onto drilling buckets, augers, and casing shoe assemblies.

Precision Machining

Tight dimensional control ensures accurate fitment with compatible drilling teeth and stable installation performance.

Long Service Life

Optimized structure extends working life, reducing replacement frequency and overall maintenance cost.

High-Strength Alloy Steel

Manufactured from premium alloy steel to ensure superior structural strength and long-term durability in demanding drilling conditions.

Excellent Wear Resistance

Designed to perform under abrasive soil, gravel, and hard rock conditions, reducing wear and deformation.

OEM-Compatible Designs

Available in BFZ, BA, C31, and other standard holder series for wide compatibility with foundation drilling systems.

Facebook Twitter Youtube Pinterest Instagram

FAQ

Foundation drilling weld-on holders are wear components used to secure cutting teeth on foundation drilling tools such as drilling buckets, augers, and casing systems. They are welded onto the cutting structure to provide a stable mounting base for round shank teeth or flat teeth.



Their main function is to ensure reliable tooth retention during drilling operations in demanding ground conditions, including hard soil, gravel, and mixed formations. By maintaining a secure connection between the tool body and cutting teeth, weld-on holders help improve drilling efficiency, reduce tooth loss, and extend the service life of foundation drilling equipment.

Yes. Our weld-on holders are designed to be compatible with a wide range of foundation drilling equipment used in deep foundation construction.



They are commonly used on rotary drilling rigs, diaphragm wall cutter systems, and casing drilling equipment, and can be welded onto drilling buckets, augers, and casing shoe assemblies. Compatibility is mainly determined by the tool structure and tooth system rather than a single machine model.



We also provide OEM customization based on drawings or technical requirements to ensure proper fitment and reliable performance across different equipment configurations.

Our weld-on holders are manufactured from high-strength alloy steel, selected for its excellent toughness, structural stability, and wear resistance in demanding foundation drilling conditions.



Depending on application requirements, the material is typically heat-treated to improve hardness and impact resistance, ensuring reliable performance under continuous drilling loads in abrasive environments such as gravel, hard soil, and mixed formations.



In some configurations, additional surface or localized hardening may be applied to further extend service life and improve resistance to edge wear and deformation during heavy-duty foundation drilling operations.
Yes. Weld-on holders are specifically engineered for use in hard rock, gravel, and other highly abrasive soil conditions commonly encountered in foundation drilling projects.

They are manufactured from high-strength alloy steel and designed to withstand continuous impact and abrasion during drilling operations. The welded structure provides strong tooth retention, helping to prevent loosening or loss of cutting teeth under heavy load.

In demanding geological formations, weld-on holders contribute to more stable cutting performance and longer tool life, especially when compared with standard wear components used in less intensive drilling conditions.

Yes. We provide OEM and custom weld-on holder solutions for different foundation drilling tools and project requirements.



We can manufacture according to drawings, samples, or technical specifications, including variations in size, welding profile, material grade, and tooth system compatibility. This ensures proper fitment with different drilling buckets, augers, and casing shoe assemblies used in foundation drilling equipment.



OEM production is commonly used for bulk orders, equipment-specific configurations, and projects that require non-standard wear part designs to match existing drilling systems.

Our weld-on holders are compatible with the most commonly used foundation drilling tooth systems, including both round shank teeth and flat teeth configurations.



They are typically used with standard replaceable tooth systems found on drilling buckets, augers, and casing tools in foundation drilling applications. Compatibility depends on the specific holder series (such as BFZ, BA, or C-type profiles) and the corresponding tooth interface design.



We can also provide OEM matching to ensure correct fitment with specific tooth systems used on different drilling equipment brands and project requirements.
