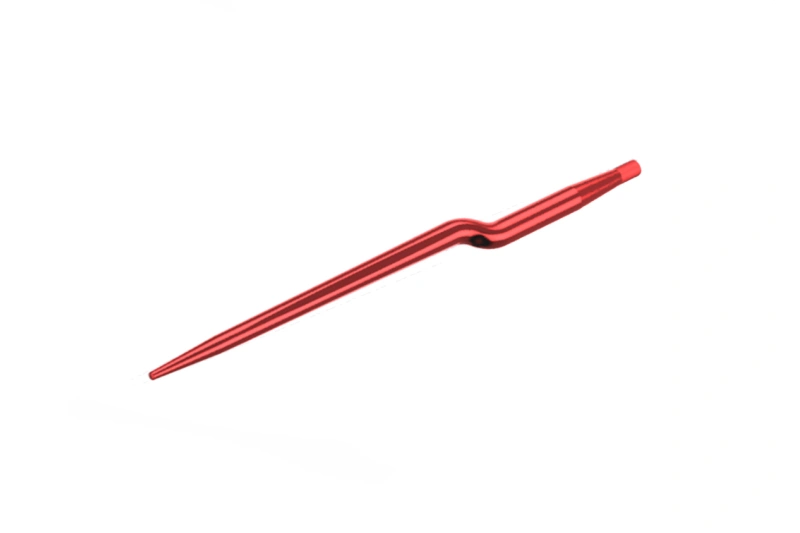

Cranked LoaderTines 600mm for Tractors, Loaders and Skid Steers

Operational Advantages

• Cranked Offset Design
  The cranked section lowers the spear tip relative to the mounting frame. This geometry allows the tine to slide easily under bales resting flat on the ground, preventing frame contact and reducing soil disturbance during loading.
• High Structural Strength
  The compact 600 mm length reduces leverage forces acting on the mounting base. Combined with the offset structure, this rigid design provides excellent stability when used as a lower support spear.
• Forged Steel Construction
  Manufactured using a high-pressure drop forging process, the tine features a refined internal grain structure and high tensile strength. This construction improves resistance to bending, wear, and metal fatigue during continuous lifting and material handling operations.

Manufacturing Quality

• Drop Forging
  The tine body is produced using closed-die drop forging, aligning the internal grain structure from the mounting base to the tip. This process significantly increases strength and durability under heavy cantilever loads.
• German-Standard Heat Treatment
  A controlled heat treatment process based on German standards optimizes hardness and bending resistance. The mounting base remains tough and ductile to prevent cracking or structural failure at the connection point.
• CNC Precision Machining
  The mounting base is CNC-machined to precise tolerances to ensure a secure fit inside standard loader sleeves. Accurate machining minimizes lateral movement and improves load stability during operation.

Applications
This compact 600 mm cranked spear is suitable for handling hay and silage bales, serving as a lower stabilizing tine, and performing loader operations in tight spaces. It is widely used on tractors, loaders, and skid steer machines in demanding agricultural environments.
